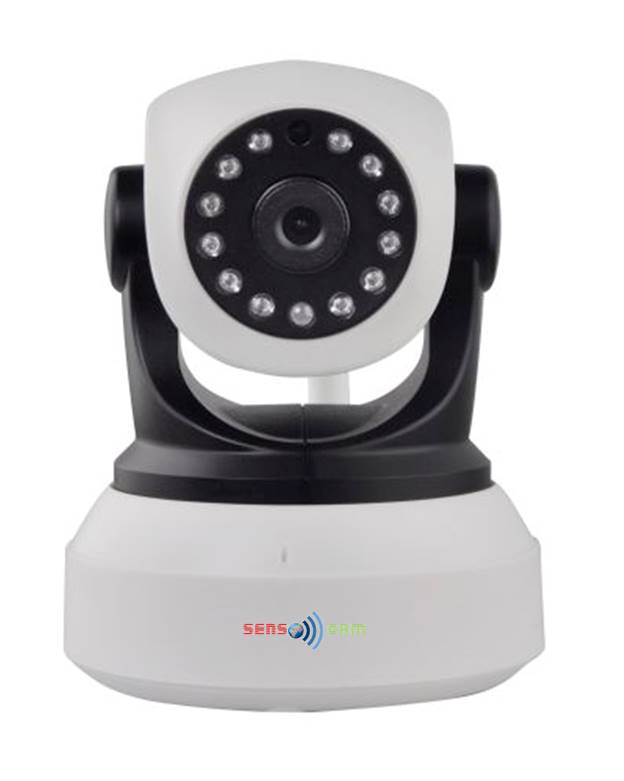

Wifi IP Camera >> SCWIPDS100
|
Model NO. |
SCWIPDS100 |
|
Camera |
|
|
Image Sensor |
1/4" Low Illumination 1.0MP CMOS Sensor |
|
Processor |
ARM926 @Max. 440MHz processor(3518E) |
|
Resolution |
1280Hx720V |
|
Output Pixel |
|
|
Effective Pixel |
1.0M |
|
Usable Illumination |
0.8Lux/F1.4 (Colourful Model), 0.3Lux/F1. (B&W Mode) |
|
PNP |
YES |
|
S/N Ratio |
≥39dB |
|
Lens |
|
|
Focus Distance |
3.6mm |
|
Focus Control |
Fixed |
|
Lens Type |
Fixed |
|
View of Angle |
F1.4/56.14?±5% |
|
Night Vision |
|
|
Infrared LED |
?5X9PCS |
|
Infrared Distance |
10M |
|
IR Status |
Under 10 Lux By CDS |
|
IR Control |
IR turned on: Night vision view enabled, infrared Ray, ICR auto detect. |
|
Network |
|
|
Input |
1 Channel Internal -48dB Microphone |
|
Output |
1 Channel Line out(3.5mm phone jack)&Internal speaker(8Ω1W) |
|
Sampling Frequency /Width |
8KHz/16bit |
|
Compression Format |
ADPCM/32kbps |
|
Alarm |
|
|
Motion Detection |
Support |
|
Action |
Image E-mail/FTP video upload |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
TCP/IP, HTTP, TCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPnP, RTSP |
|
ONVIF |
Support ONVIF 2.0 |
|
P2P |
YES, Support QR Code |
|
POE |
N/A |
|
WIFI |
WiFi802.11b/g/n |
|
Security |
WPS Encryption |
|
Video Delay |
0.3S (Within the Lan) |
|
Bit Rate |
CBR/VBR, Output Bit Rate Range: 128~4096kbps |
|
Main Stream |
|
|
Sub Stream |
VGA (640*480)@30fps |
|
JPEG Capture |
720P (1280*720)@1fps |
|
IE Brower |
IE8-11, Google Chrome, Firefox |
|
Smart Phone |
iOS, Andriod OS |
|
Camera Features |
|
|
Day/Night |
Color/ B&W (IR-CUT ) |
|
Compression |
Motion-JPEG,Support record AVI format |
|
Image Config |
Brightness/Contrast |
|
Privacy Masking |
NO |
|
WDR |
NO |
|
Recording Mode |
NVR/CMS/Web |
|
Language |
Chinese Simplified, English |
|
General |
|
|
System Requirement |
XP,Vista,iPhone iOS4.3,The android version 2.3 or higher |
|
Hard Reset |
Support (Long press for 15 seconds to restore back to factory settings) |
|
Storage |
Support (up to 64G Micro SD card, loop recording) |
|
CMS |
1,4,9,16,25,36, 64,81-channel, no user number limitation , remote record,remote playback, alarm email ect. |
|
Online Visitor |
Support 4 online visitors simultaneously |
|
P/T |
Support (Pan:270°,Tilt:70°) |
|
Preset Position |
15 |
|
Power Supply |
DC5±0.3V 2A |
|
Power consumption |
3.5W(IR opening )/7W(P/T working ) |
|
Application environment |
Indoor |
|
Operation Temperature |
-10? ~ +50? RH90% Max |
|
Storage Temperature |
-20? ~ +60? RH90% Max |
|
Dimension |
145x110x125mm (LxWxH) |
|
Weight |
0.35kg |
|
Installation |
Wall mounting, ceiling mounting |
