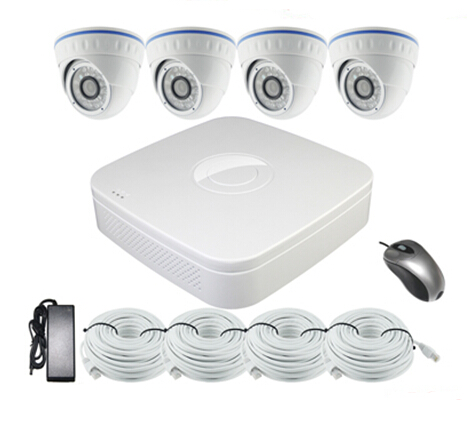

DIY KITS >> SCAS-NVR-41SR
|
Model NO. |
SCNVR-41SRH13 |
SCNVR-41SRH20 |
SCNVR-41SRE20 |
|
Package |
|||
|
NVR |
1x4CH*1080P AS-N0410HAW |
||
|
Camera |
4 x ADSR20H130 |
4 x ADSR20H200 |
4 x ADSR20E200 |
|
Cable |
4x 18m CAT5 Cable |
||
|
Mouse |
1xUSB 2.0 Mouse |
||
|
Power Cable |
1x5CH Power Splitter Cable |
||
|
Adaptor |
1x6A Power Adaptor+1xPower Cable (US, EU, UK, AU Plug is Optional) |
||
|
Weight |
5.5KGS/SET |
||
|
Camera Model |
ADSR20H130 |
ADSR20H200 |
ADSR20E200 |
|
Image Sensor |
IMX225 |
IMX322 |
IMX322 |
|
Main processor |
HI3518C |
HI3516C |
A5S66 |
|
Resolution |
960P |
1080P |
1080P |
|
Effective Pixels |
1280(H)*960(V) |
1920(H)*1080(V) |
1920(H)*1080(V) |
|
TV System |
PAL/NTSC |
||
|
Electronic Shutter Time |
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
||
|
Sync System |
Internal |
||
|
Usable Illumination |
0.01Lux |
||
|
S/N Ratio |
≥52dB |
||
|
Scanning System |
Progressive |
||
|
Video Output |
Network |
||
|
Lens |
|||
|
Focus Length |
3.6mm |
||
|
Focus Control |
Fixed |
||
|
Lens Type |
Fixed |
||
|
Pixels |
2M Pixels |
3M Pixels |
3M Pixels |
|
Night Vision |
|||
|
Infrared LED |
?5X24PCS |
||
|
Infrared Distance |
20M |
||
|
IR Status |
Under 10 Lux By CDS |
||
|
IR Power On |
CDS Auto Control |
||
|
Network |
|||
|
Ethernet |
RJ-45 (10/100Base-T) |
||
|
Protocol |
IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
||
|
ONVIF |
Support ONVIF 2.4 |
||
|
P2P |
YES, Support QR Code |
||
|
POE |
Optional, Support IEEE 802.3af |
||
|
WIFI |
N/A |
||
|
Video Delay |
0.3S (Within the Lan) |
||
|
Main Stream |
1280*960@30fps |
1920*1080@30fps |
1920*1080@30fps |
|
Sub Stream |
704*576@30fps, |
704*576@30fps, |
704*576@30fps, |
|
IE Brower |
IE8-11, Google Chrome, Firefox |
||
|
Smart Phone |
iPhone, iPad, Android, Android Pad |
||
|
Camera Features |
|||
|
Day/Night |
Color/ B&W (IR-CUT ) |
||
|
Compression |
H.264/JPEG,Support record AVI format. |
||
|
Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control) |
||
|
Motion Detection |
Support |
||
|
Privacy Masking |
3 Rectangular Zone |
||
|
WDR |
NO |
NO |
YES |
|
Recording Mode |
NVR/NAS/CMS/Web |
||
|
Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, |
||
|
General |
|||
|
Housing |
Vandalproof( metal ) |
||
|
Lens Angle Adjustment |
No, Without Bracket |
||
|
IR Cut Filter |
YES |
||
|
Operation Temperature |
-10? ~ +50? RH95% Max |
||
|
Storage Temperature |
-20? ~ +60? RH95% Max |
||
|
Power Source |
DC12V±10%, 500mA |
||
|
Dimension |
?94 x 69(H) mm |
||
|
Weight |
450g |
||
|
Model |
AS-N0410HAW |
||
|
System |
|||
|
Main Processor |
ARM Cortex A9 Processor(HI3520D) |
||
|
Operating System |
Embedded LINUX |
||
|
Video |
|||
|
Input |
4 Channel, Support 1920×1080, 1280×960, 1280×720 ect... |
||
|
Output |
1 VGA, 1 HDMI |
||
|
Alarm |
|||
|
Sensor Input |
NO |
||
|
Output |
NO |
||
|
Motion Detection |
4 Channel |
||
|
Email Alarm |
Support |
||
|
Display |
|||
|
VGA |
Resolution: 1024×768?1280×720?1280×1024 |
||
|
HDMI |
Resolution: 1080P(1920×1080) 720P:(1280×720) |
||
|
Display Split |
4 Channel / 1Channel |
||
|
Digital Zoom |
NO |
||
|
OSD |
Camera title, Time, Video loss, Recording, Motion Detection |
||
|
Recording |
|||
|
Video Compression |
H.264 |
||
|
Resolution |
1080P(1920×1080) / 960P(1280x960) / 720P(1280×720) / D1 (704×576/704×480) |
||
|
Record Rate |
PAL :1080P@100fps, 960P@100fps, 720P@100fps, D1@100fps |
||
|
Record Mode |
Timer \ Motion Detection |
||
|
Playback & Backup |
|||
|
Local Sync Playback |
1x1080P |
||
|
Remote Sync Playback |
yes |
||
|
Search Mode |
ALL, Channel, Time, Date, Motion Detection |
||
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play |
||
|
Backup Mode |
USB Device,remotely ,CMS |
||
|
Network |
|||
|
Interface |
1 RJ45 10M/100M Adaptive Ethernet Interface |
||
|
Network Functions |
HTTP, IPv4, TCP/IP, DNS,DHCP,NTP,DDNS |
||
|
Onvif Version |
Support Onvif 2.4 |
||
|
Web Browser |
IE6-11 |
||
|
CMS Software |
Support Windows XP / Windows Vista / Windows 7/ Windows 8 |
||
|
Cloud Support(P2P) |
Yes |
||
|
Smart Phone |
iPhone, iPad, Android, Android PAD |
||
|
Hard Disk Driver |
|||
|
Interface Type |
1 SATA Interface |
||
|
Capacity |
Up to 4TB capacity |
||
|
General |
|||
|
Language |
Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa |
||
|
USB Interface |
2 USB 2.0 Interfaces |
||
|
Power Supply |
DC12V/2A |
||
|
Working Environment |
-10~55?/10~90% |
||
|
Dimension(W×D×H) |
215*215*53mm |
||
|
Weight |
2.0KG (without HDD) |
||
