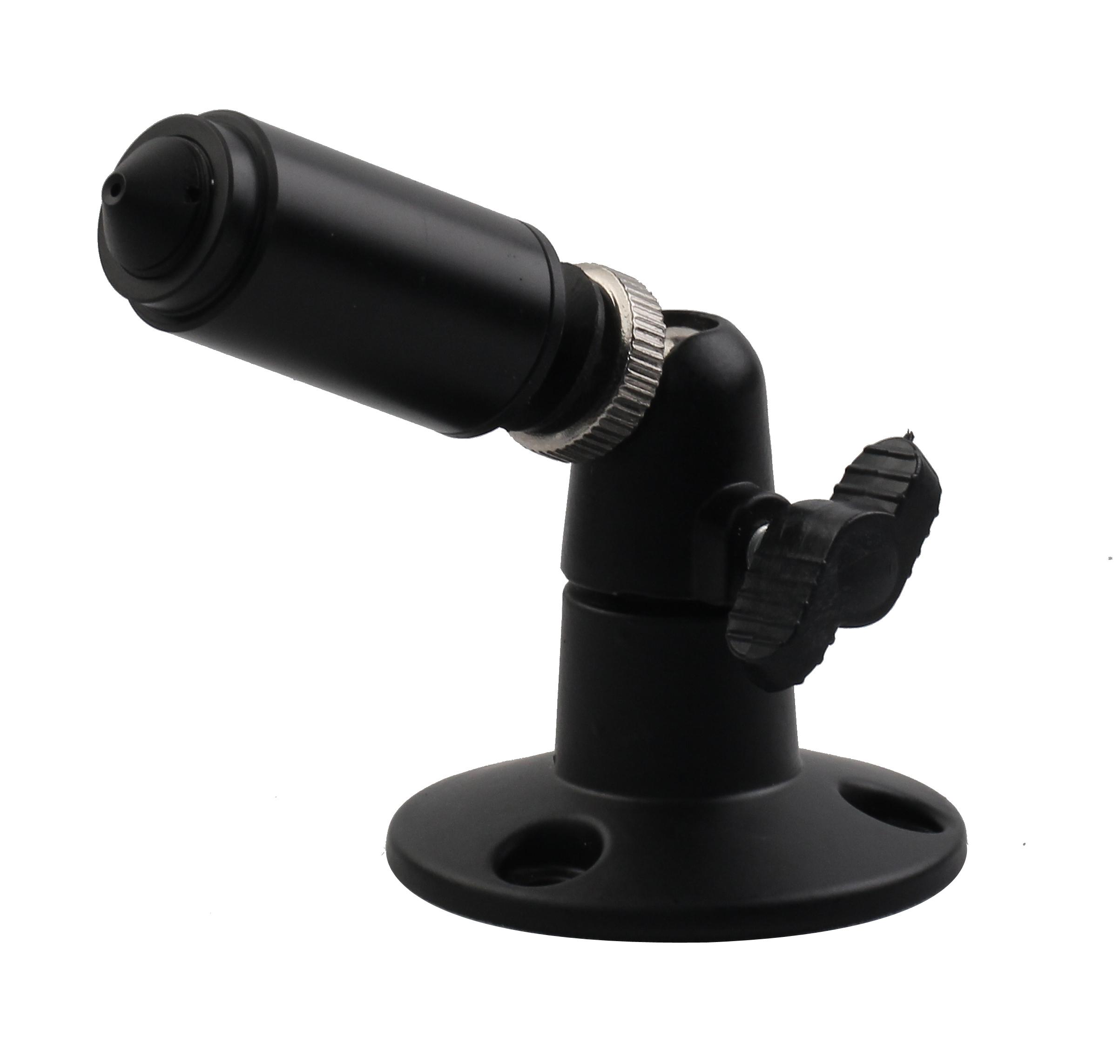

Model NO.

SCAME30A130H

Camera

Image Sensor

1/3" SONY IMX225

DSP

NVP2431H

Image Resolution

960P/960H

Effective Pixels

1.3MP, 1280x960

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec

Sync System

Internal

Usable Illumination

0.01Lux/F1.2

S/N Ratio

≥50dB

Gamma Correction

0.45

Scanning System

PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec

Video Output

Composite Signal (1.0Vp-p, 75Ω)

Lens

Focus Length

3.6mm Board Lens

Focus Control

Fixed

Lens Type

Fixed

Pixels

2M Pixels

Camera Features

Day/Night

Color/ B&W

OSD Menu Language

CN, EN, KR, JP, IT,  RU, PT, ES, DE,  FR

Wide Dynamic Range

DWDR

Backlight Compensation

YES

White Balance

AUTO

Gain Control

AUTO

Noise Reduction

3D NR

Privacy Masking

YES

Digital Zoom

NO

Picture Adjustment

YES

UTC Support

NO

General

Weatherproof Housing

NO

Anti-cut Bracket

NO, With Bracket

Dual Voltage

NO

IR Cut Filter

NO

Heater

NO

Operation  Temperature

-10? ~ +50? RH95% Max

Storage Temperature

-20? ~ +60? RH95% Max

Power Source

DC12V±10%, 150mA

Dimension

?20 x 46(H) mm

Weight

200g
