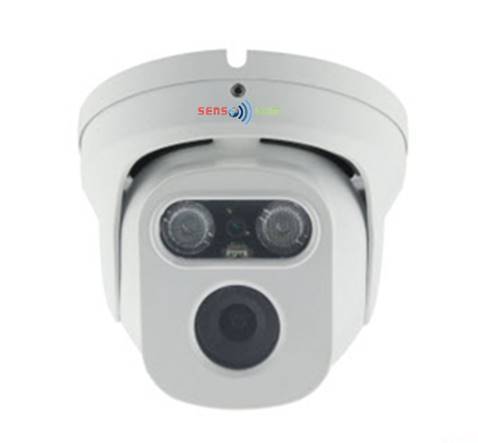

Analog Cameras >> SCADC20X
|
Model NO. |
SCADC20XHA |
SCADC20XA130 |
SCADC20XE200 |
|
Camera |
|||
|
Category |
Analogue Camera |
HD Camera |
IP Camera |
|
CCD/CMOS |
CCD |
CMOS |
CMOS |
|
Image Sensor |
ICX811AK |
IMX238 |
IMX238 |
|
DSP |
Effio-A |
2431H |
A5S66 |
|
Horizontal Resolution |
720TVL |
1.4MP |
3MP |
|
Effective Pixels |
976(H)×582(V) |
1280(H)×960(V) |
1280(H)×960(V) |
|
TV System |
PAL/NTSC |
||
|
Electronic Shutter Time |
Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec |
1/25s~1/50,000s , 1/30s~1/60,000s |
Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
|
Sync System |
Internal |
External |
|
|
Usable Illumination |
0.001Lux/F2.0 |
0.001Lux/F2.0 |
0.001Lux/F2.0 |
|
S/N Ratio |
≥50dB |
≥50dB |
≥52dB |
|
Gamma Correction |
0.45 |
||
|
Scanning System |
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec |
Progressive Scan |
Progressive Scan |
|
Video Output |
Composite Signal (1.0Vp-p, 75Ω) |
AHD/CVBS (960H) (BNC) |
Network |
|
Lens |
|||
|
Focus Length |
2.8-12mm |
||
|
Focus Control |
Auto |
||
|
Lens Type |
Auto |
||
|
Pixels |
2M Pixels |
||
|
Auto Iris Support |
Auto |
||
|
Night Vision |
|||
|
Infrared LED |
?42X2PCS |
||
|
Infrared Distance |
40M |
||
|
IR Status |
Under 10 Lux By CDS |
||
|
IR Power On |
CDS Auto Control |
||
|
Camera Features |
|||
|
Day/Night |
Color/ B&W |
Auto (ICR) / Color / B&W |
Color/ B&W (IR-CUT ) |
|
OSD Menu Language |
CN, EN, FR, DE, |
EN, CN, DE, FRA, IT, ES |
CN,EN,BG,PL,FA,DE,RU |
|
Defog |
YES |
NO |
NO |
|
Sense-up |
YES |
YES |
YES |
|
Smart-IR |
YES |
NO |
YES |
|
Wide Dynamic Range |
Super DWDR |
DWDR |
WDR |
|
Backlight Compensation |
YES |
NO |
NO |
|
White Balance |
AUTO |
AUTO |
AUTO |
|
Gain Control |
AUTO |
AUTO |
AUTO |
|
Noise Reduction |
3D NR |
3D NR |
3D NR |
|
Privacy Masking |
YES |
NO |
NO |
|
Digital Zoom |
NO |
NO |
YES |
|
Picture Adjustment |
YES |
YES |
YES |
|
UTC Support |
YES |
NO |
NO |
|
General |
|||
|
Vandalproof Housing |
YES |
||
|
Weatherproof Housing |
YES |
||
|
Lens Angle Adjustment |
YES, 3-Axis Bracket Built-in for Lens Adjustment |
||
|
Dual Voltage |
NO |
||
|
IR Cut Filter |
NO |
||
|
Heater |
NO |
||
|
Operation Temperature |
-10? ~ +50? RH95% Max |
||
|
Storage Temperature |
-20? ~ +60? RH95% Max |
||
|
Power Source |
DC12V±10%, 700mA |
||
|
Dimension |
?120 x 100(H) mm |
||
|
Weight |
800g |
||
