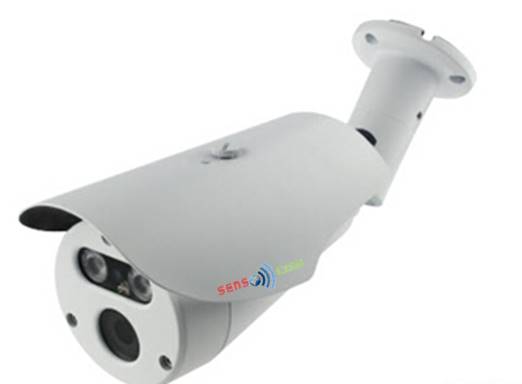

Analog Cameras >> SCAVBG20
|
Model NO. |
SCAVBG20A100 |
SCAVBG20A130 |
SCAVBG20A200 |
SCAVBG20C130 |
SCAVBG20C200 |
SCAVBG20V130 |
SCAVBG20V200 |
|
Camera |
|||||||
|
Image Sensor |
OV9712S |
IMX238 |
IMX322 |
AR0130 |
OV2710 |
IMX238 |
OV2710 |
|
DSP |
NVP2431H |
NVP2431H |
NVP2441H |
DH9801 |
FH8530C |
TP2801 |
FH8531 |
|
Image Resolution |
720P/960H |
960P/960H |
1080P/960H |
960P |
1080P |
960P |
1080P |
|
Effective Pixels |
1.0MP, 1280x720 |
1.4MP, 1280x960 |
2.4MP, 1920x1080 |
1.3MP, 1280x960 |
2.1MP, 1920x1080 |
1.4MP, 1280x960 |
2.1MP, 1920x1080 |
|
TV System |
PAL/NTSC |
||||||
|
Electronic Shutter |
1/25s~1/50,000s , 1/30s~1/60,000s |
||||||
|
Sync System |
Internal |
||||||
|
Usable Illumination |
0.01Lux |
0.001Lux |
0.001Lux |
0.01Lux |
0.01Lux |
0.001Lux |
0.01Lux |
|
S/N Ratio |
≥50dB |
||||||
|
Scanning System |
Progressive Scan |
||||||
|
Video Output Mode |
AHD/CVBS (960H) (BNC) |
AHD/CVBS (960H) (BNC) |
AHD/CVBS (960H) (BNC) |
CVI(BNC) |
CVI(BNC) |
TVI(BNC) |
TVI(BNC) |
|
Lens |
|||||||
|
Focus Length |
Board Lens 3.6mm/F2.0 |
||||||
|
Focus Control |
Fixed |
||||||
|
Lens Type |
Fixed |
||||||
|
Pixels |
2M Pixels |
||||||
|
Auto Iris Support |
NO |
||||||
|
Night Vision |
|||||||
|
Infrared LED |
?18.5X2PCS |
||||||
|
Infrared Distance |
40M |
||||||
|
IR Status |
Under 10 Lux by CDS |
||||||
|
IR Power On |
CDS Auto Control |
||||||
|
Camera Features |
|||||||
|
Day/Night |
Auto (ICR) / Color / B&W |
Auto (ICR) / Color / B&W |
Auto (ICR) / Color / B&W |
Auto (ICR) / Color / B&W |
Auto (ICR) / Color / B&W |
Auto (ICR) / Color / B&W |
Auto (ICR) / Color / B&W |
|
OSD Menu Language |
EN, CN, DE, FRA, IT, ES, |
EN, CN, DE, FRA, IT, ES |
EN, CN, DE, FRA, IT, ES |
No |
No |
No |
No |
|
White Balance |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto |
Auto |
Auto |
Auto |
|
Gain Control |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
|
Noise Reduction |
3D NR |
3D NR |
3D NR |
3D NR |
2D NR |
3D NR |
2D NR |
|
Picture Adjustment |
Yes |
Yes |
Yes |
No |
No |
No |
No |
|
OSD Support |
Yes |
Yes |
Yes |
No |
No |
No |
No |
|
General |
|||||||
|
Weatherproof Housing |
YES, IP66 |
||||||
|
Anti-cut Bracket |
YES, 3-Axis |
||||||
|
Dual Voltage |
NO |
||||||
|
IR Cut Filter |
YES |
||||||
|
Heater |
NO |
||||||
|
Operation Temperature |
-10? ~ +50? RH95% Max |
||||||
|
Storage Temperature |
-20? ~ +60? RH95% Max |
||||||
|
Power Source |
DC12V±10%, 700mA |
||||||
|
Dimension |
291.5(W)x101.5(H)x97.5(D)mm |
||||||
|
Weight |
1.7kg |
||||||
