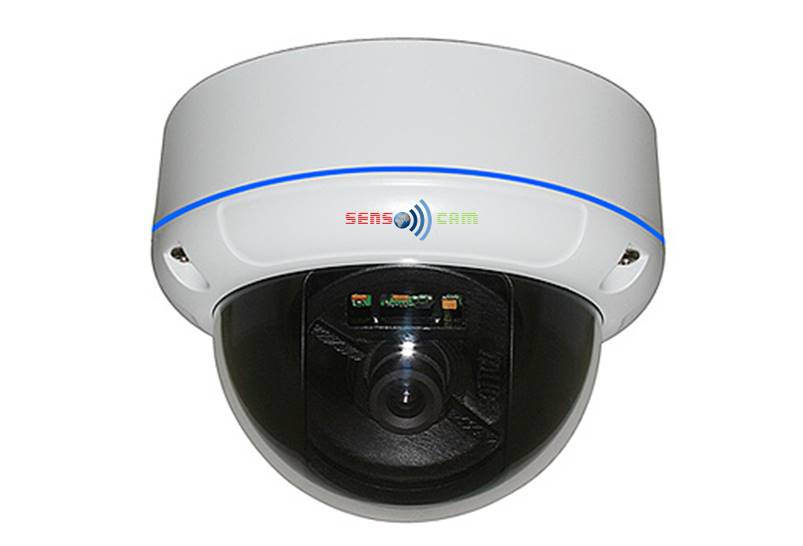

Vandalproof Dome Cameras >> SCADN45
|
Model NO. |
SCADSH30HV |
SCADSH30HA |
SCADSH30S70 |
SCADSH30B65 |
SCADSH30HS |
SCADSH30HP |
SCADSH30HN |
SCADSH30P80 |
|
Camera |
||||||||
|
CCD/CMOS |
CCD |
CCD |
CCD |
CCD |
CMOS |
CMOS |
CMOS |
CMOS |
|
Image Sensor |
ICX663AK |
ICX811AK |
ICX811AK |
ICX639BK |
IMX238 |
IMX238 |
HS1200 |
PC1099K |
|
DSP |
Effio-V |
Effio-A |
Effio-E |
NVP2090 |
FH8526 |
FH8520 |
FH8526 |
/ |
|
Horizontal Resolution |
720TVL |
720TVL |
700TVL |
650TVL |
1200TVL |
1000TVL |
1200TVL |
800TVL |
|
Effective Pixels |
976(H)×582(V) |
976(H)×582(V) |
976(H)×582(V) |
752(H)×582(V) |
1305(H)X1049(V) |
1305(H)X1049(V) |
1296(H)X964(v) |
960(H)×480(V) |
|
TV System |
PAL/NTSC |
|||||||
|
Electronic Shutter Time |
Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec |
|||||||
|
Sync System |
Internal |
|||||||
|
Usable Illumination |
0.001Lux/F2.0 |
0.001Lux/F2.0 |
0.001Lux/F2.0 |
0.01Lux/F2.0 |
0.01Lux/F2.0 |
0.01Lux/F2.0 |
0.01Lux/F2.0 |
0.1Lux/F2.0 |
|
S/N Ratio |
≥52dB |
≥50dB |
≥52dB |
≥52dB |
≥50dB |
≥50dB |
≥44dB |
≥50dB |
|
Gamma Correction |
0.45 |
|||||||
|
Scanning System |
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec |
|||||||
|
Video Output |
Composite Signal (1.0Vp-p, 75Ω) |
|||||||
|
Lens |
||||||||
|
Focus Length |
2.8-12mm (6-22mm optional) |
|||||||
|
Focus Control |
Manual |
|||||||
|
Lens Type |
Manual |
|||||||
|
Pixels |
2M Pixels |
|||||||
|
Auto Iris Support |
NO |
|||||||
|
Camera Features |
||||||||
|
Day/Night |
Color/ B&W |
|||||||
|
OSD Menu Language |
CN, EN, FR, DE, |
CN, EN, FR, DE, |
CN, EN, FR, DE, |
EN, CH(S), CH, SP, RU, JP, PO, GE, FR |
NO |
CN, EN, RU, IT |
NO |
NO |
|
Defog |
YES |
YES |
NO |
NO |
NO |
NO |
NO |
NO |
|
Sense-up |
YES |
YES |
NO |
NO |
NO |
NO |
NO |
NO |
|
Smart-IR |
NO |
YES |
YES |
NO |
NO |
NO |
NO |
NO |
|
Wide Dynamic Range |
Real WDR |
Super DWDR |
DWDR |
DWDR |
NO |
WDR |
NO |
NO |
|
Backlight Compensation |
YES |
YES |
YES |
YES |
NO |
YES |
NO |
NO |
|
White Balance |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
|
Gain Control |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
|
Noise Reduction |
3D NR |
3D NR |
2D NR |
2D NR |
2D NR |
3D NR |
2DNR |
NO |
|
Privacy Masking |
YES |
YES |
YES |
YES |
NO |
YES |
NO |
NO |
|
Digital Zoom |
YES |
YES |
NO |
NO |
NO |
YES |
NO |
NO |
|
Picture Adjustment |
YES |
YES |
YES |
YES |
NO |
YES |
NO |
NO |
|
UTC Support |
YES |
YES |
YES |
NO |
NO |
YES |
NO |
YES |
|
General |
||||||||
|
Vandalproof Housing |
YES |
|||||||
|
Weatherproof Housing |
NO |
|||||||
|
Lens Angle Adjustment |
YES, 2-Axis Bracket Built-in for Lens Adjustment |
|||||||
|
Dual Voltage |
NO |
|||||||
|
IR Cut Filter |
NO |
|||||||
|
Heater |
NO |
|||||||
|
Operation Temperature |
-10? ~ +50? RH95% Max |
|||||||
|
Storage Temperature |
-20? ~ +60? RH95% Max |
|||||||
|
Power Source |
DC12V±10%, 300mA |
|||||||
|
Dimension |
?142x 100(H)mm |
|||||||
|
Weight |
900g |
|||||||
